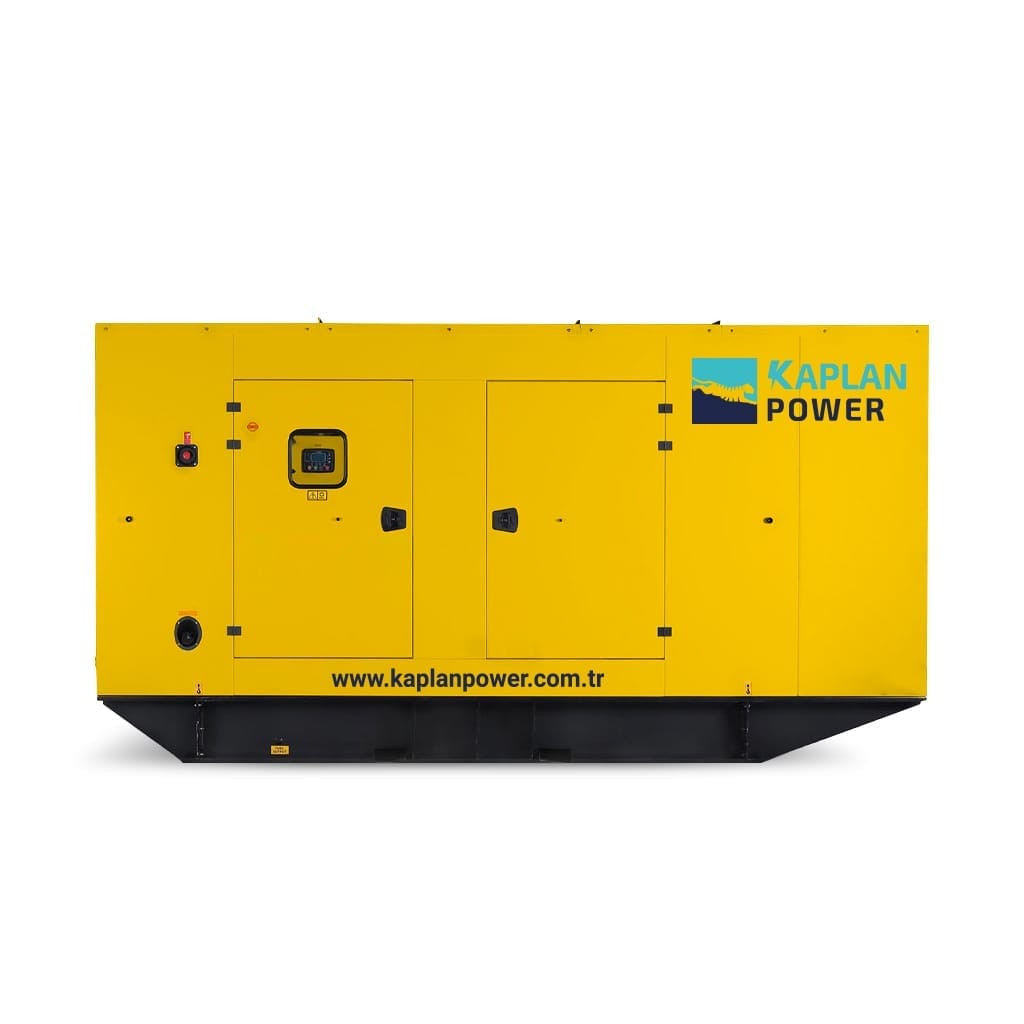

| Model Name | KPS 275 | |
| Standby Rating | kVA | 275 |
| Standby Rating | kW | 220 |
| Prime Rating | kVA | 247,50 |
| Prime Rating | kW | 198,00 |
| Frequency | Hz | 50 |
| Voltage | V | 230/400 |
| Fuel Type | Diesel | |
| Motor Brand and Model | SDEC – SC9D310D2 | |
| Alternator Brand and Model | KAPLAN POWER – KPS 275 | |
| Control Panel Model | Datakom D309 | |
| Cabin | AK 10 |
| Manufacturer | SDEC | |
| Model | SC9D310D2 | |
| No. of Cylinders & Build | 06 Cylinder, In Line | |
| Aspiration and Cooling | Water | |
| Maximum Standby Power | kW | 220 |
| Total Displacement | L | 8.82 |
| Bore x Stroke | mm | 114×144 |
| Compression Ratio | 18:1 | |
| Rated Speed | rpm | 1500 |
| Governor | Electronic | |
| Oil Capacity | L | 19 |
| Coolant Capacity | L | 12 |
| Start System | 24 V D.c. | |
| Fuel Consumption | 100% Load | |
| L/H | 50.6 |
| Make | KAPLAN POWER | |
| Model | KPS 275 | |
| Short Circuit | > 300% | |
| Current Frequency | Hz | 50 |
| Power | kVA | 275 |
| Design | Brushless, 4 Poles | |
| Phase | V | 3P |
| Voltage | A | 400/230 |
| Current | A | 396 |
| Insulation Class | H | |
| Stator | 2/3 steps | |
| Rotor | Single Bearing System | |
| Excitation System | Electronic AVR | |
| Stationary Voltage Regulation | 1% (+/-) | |
| Connection Type | Star |
| Dimensions Without Canopy and Weight | ||
| Length (L) | mm | 3000 |
| Height (H) | mm | 1400 |
| Width (W) | mm | 1100 |
| Net Weight | Kg | 2515 |
| Standard Fuel Tank | L | 300-350 |
| Dimensions With Canopy and Weight | ||
| Length (L) | mm | 3100 |
| Height (H) | mm | 2000 |
| Width (W) | mm | 1100 |
| Net Weight | Kg | 2220 |
| Standard Fuel Tank | L | 300-350 |
| Desibel | db(A) | 65-75 |
